Working Principle:

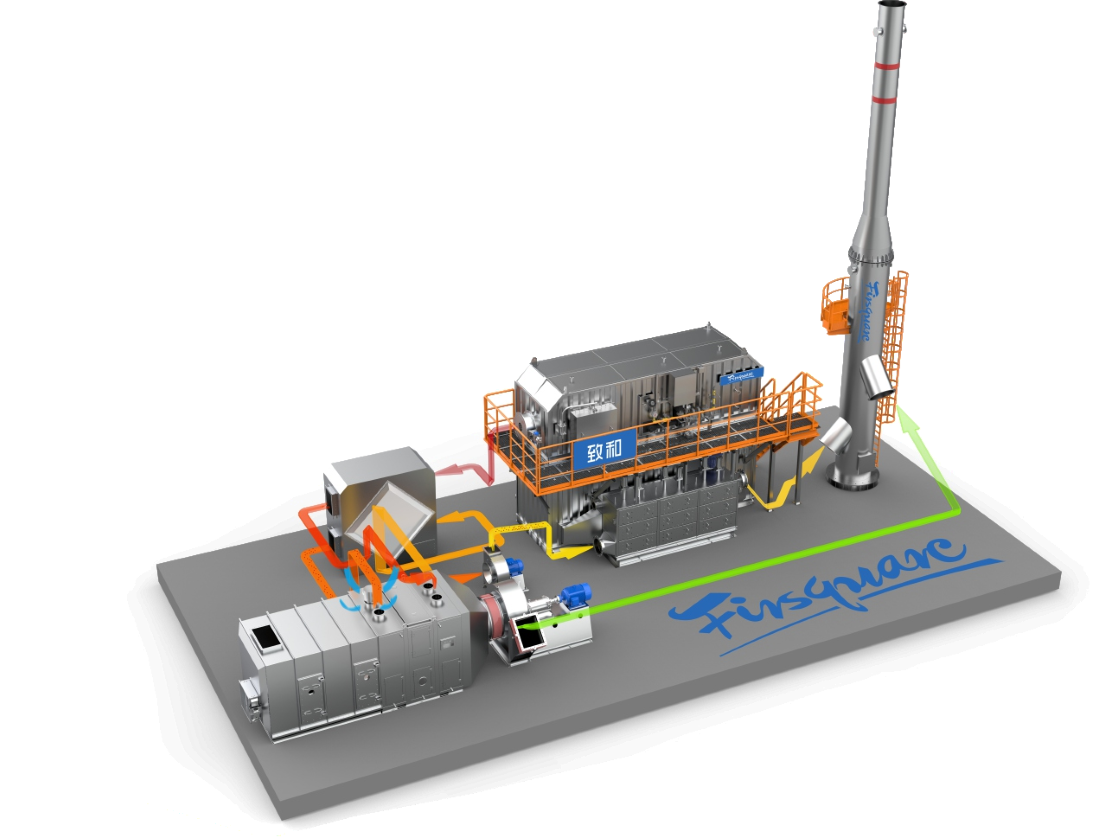

The Regenerative Thermal Oxidizer(RTO) heats VOcs to above 800℃, and VOCs undergo thermal oxidation, generating CO2, and H2O. The high-temperature gas produced by oxidation fows through the honeycomb ceramic regenerator, then the regenerator begins to heat up and start "heat storage" process, which can heat those follow-up VOCs, saving the fuel consumption used for additional heating.
The RTO system sets up multiple regeneralive chambers, each undergoes "heat storage--heat release--gas cleaning" process over and over again, working continuously. After the regenerative chamber releases the heat, it begins to clean the remaining VOCs, When thecleaning is completed, the "heat storage" process starts again, which can avoid the remaining VOCs being discharged into the atmosphere, reducing the treatment efficiency as a consequence.
Scope ofApplication：
Air Volume Range: 2,000-150,000 CMH (Main EquipmentModei:6000,8000,10000,12000)
Concentration Range: 0%-25% LEL
Destruction Removal Efficiency (DRE): ≥99%
Applicable VOCs Types: Alcohol, Alkane, Olefin, Ketone, Ether, Benzene, etc.
Equipment Features:
Superior Performance: High Removal Efficiency, High Thermal Efficiency (special constructed heatexchanger), Low Pressure Drop, Low Energy Consumption, Low Operating Cost, High safety(with multiple warning devices)
Modular Delivery: RTO furnace stack adopts modular structure, field bolting and quick installation
Structural Design:
The poppet valve is side-mounted and vertical lifing; The valve seat uses integral casting structure, with no less than SS304 material
The poppet valve uses soft sealing and gassealing(dual-sealing), with extremely high sealing performance
The poppet valve and the poppet valve box are integrated structure, completely assembled and debugged in the workshop, and transported to the site as a whole
